Sandbox Game Engine

A modular, Vulkan-based game engine built with modern C++20

---

Sandbox is a game engine written from the ground up in C++20, designed as both a learning tool and a practical framework for real-time 3D applications. It features a Vulkan-based deferred PBR rendering pipeline, a render graph architecture, and a modular design built around an Entity-Component-System core.

‍Note: Active development happens on the development branch.

Features

Rendering

• Vulkan-based deferred PBR shading pipeline
• Image-Based Lighting (IBL) — compute-generated BRDF LUT, irradiance, and prefiltered environment maps
• Cascaded Shadow Maps (4 cascades at varying resolutions)
• Weighted Blended Order-Independent Transparency (WBOIT)
• Skybox rendering with HDR cube maps
• Post-processing chain: tonemapping, FXAA, bloom (WIP)
• Render graph with automatic dependency resolution and pass ordering
• GPU compute passes for skinning and particle simulation

Engine

• Entity-Component-System architecture
• Scene graph with YAML-based scene loading
• Skeletal animation system with state machines and blend transitions
• GPU-driven particle system with configurable emitters
• C# scripting via .NET integration
• Audio engine
• Editor and gizmo tools
• Debug rendering and grid overlay
• Profiling support (easy_profiler)

In progress: SSAO, bloom, physics engine, networking, AI systems

Architecture

The engine is split into independent modules, each prefixed with libsbx-:

Module	Purpose
core	Engine lifecycle, application base class, CLI, module system
ecs	Entity-Component-System framework
graphics	Vulkan rendering, pipelines, render graph, compute passes
models	Static mesh loading, materials, draw lists
animations	Skeletal animation, GPU skinning, state machines
particles	GPU particle simulation and rendering
scenes	Scene graph, transforms, skybox, debug/grid rendering
physics	Physics simulation
audio	Audio playback
scripting	C# scripting via .NET
devices	Window management and input handling
ui	User interface rendering
editor	In-engine editor tools
gizmos	Debug visualization
post	Post-processing filters (tonemap, FXAA, blur, SSAO, bloom)
signals	Event / signal system
math	Vectors, matrices, transforms, noise, colors
memory	Custom allocators, observer pointers
io	File I/O and resource loading
assets	Asset pipeline and management
bitmaps	Image loading and manipulation
sprites	2D sprite rendering
containers	Custom container types
units	Type-safe unit system
utility	Logging, timers, string IDs, general utilities

Getting Started

Prerequisites

• A C++20 compatible compiler (MinGW via MSYS2 recommended on Windows)
• CMake 3.x+
• Conan (C++ package manager)
• Vulkan SDK
• .NET SDK (for C# scripting)

Clone

git clone -b development https://github.com/KabelitzJ/sandbox.git
cd sandbox

Install Dependencies

conan install . --profile=default --build=missing

Build

cmake . -B build/debug -G "MinGW Makefiles" -DCMAKE_BUILD_TYPE=Debug
cmake --build build/debug

‍Adjust the generator (-G) and build type to match your toolchain.

Run the Demo

./build/debug/bin/demo.exe

Usage Examples

The project includes a full demo application in demo/demo/ that showcases the engine's capabilities.

Creating an Application

Derive from sbx::core::application to set up modules, load assets, and build your scene:

// demo/demo/application.hpp

#include <libsbx/core/core.hpp>
#include <libsbx/devices/devices.hpp>
#include <libsbx/graphics/graphics.hpp>
#include <libsbx/scenes/scenes.hpp>
#include <libsbx/animations/animations_module.hpp>
#include <libsbx/particles/particle_emitter.hpp>

namespace demo {

class application : public sbx::core::application {

public:

  application();
  ~application() override = default;

  auto update() -> void override;
  auto fixed_update() -> void override;
  auto is_paused() const -> bool override;

private:

  auto _generate_brdf(const std::uint32_t size) -> void;
  auto _generate_irradiance(const std::uint32_t size) -> void;
  auto _generate_prefiltered(const std::uint32_t size) -> void;

  bool _is_paused;
  sbx::math::angle _rotation;

  sbx::graphics::image2d_handle _brdf;
  sbx::graphics::cube_image2d_handle _irradiance;
  sbx::graphics::cube_image2d_handle _prefiltered;

}; // class application

} // namespace demo

The constructor sets up the full scene — loading meshes, textures, and materials; generating IBL maps via compute shaders; configuring skeletal animations with state machine transitions; spawning particle emitters; and instantiating C# scripts on scene nodes:

application::application() {
  // ...

  // Set up the renderer
  auto& graphics_module = sbx::core::engine::get_module<sbx::graphics::graphics_module>();

  graphics_module.set_renderer<demo::renderer>();

  // Load the scene from YAML
  auto& scenes_module = sbx::core::engine::get_module<sbx::scenes::scenes_module>();

  auto& scene = scenes_module.load_scene("res://scenes/scene.yaml");

  // Load PBR textures
  scene.add_image("helmet_albedo", "res://textures/helmet/albedo.jpg", sbx::graphics::format::r8g8b8a8_srgb);
  scene.add_image("helmet_normal", "res://textures/helmet/normal.jpg", sbx::graphics::format::r8g8b8a8_unorm);
  scene.add_image("helmet_mrao", "res://textures/helmet/mrao2.jpg", sbx::graphics::format::r8g8b8a8_unorm);
  scene.add_image("helmet_emissive", "res://textures/helmet/emissive.jpg", sbx::graphics::format::r8g8b8a8_srgb);

  // Generate IBL maps on the GPU
  _generate_brdf(512);
  _generate_irradiance(64);
  _generate_prefiltered(512);

  // Configure a PBR material
  auto& helmet_material = scene.add_material<sbx::models::material>("helmet");
  helmet_material.albedo.image = scene.get_image("helmet_albedo");
  helmet_material.normal.image = scene.get_image("helmet_normal");
  helmet_material.mrao.image = scene.get_image("helmet_mrao");
  helmet_material.emissive.image = scene.get_image("helmet_emissive");
  helmet_material.emissive_strength = 16.0f;

  // Set up skeletal animation with state transitions
  auto& fox_animator = scene.add_component<sbx::animations::animator>(fox);
  fox_animator.add_state({"Walk", scene.get_animation("Walk"), true, 0.5f});
  fox_animator.add_state({"Survey", scene.get_animation("Survey"), true, 0.5f});
  fox_animator.add_state({"Run", scene.get_animation("Run"), true, 0.5f});

  fox_animator.add_transition({"Walk", "Run", 0.15f, [](const auto& a) {
    if (auto v = a.float_parameter("speed"); v) return *v >= 2.0f;
    return false;
  }});

  // Attach a particle emitter to the fox's tail bone
  auto tail = animations_module.find_skeleton_node(fox, "b_Tail03_014");

  auto tail_emitter = scene.create_child_node(tail, "TailEmitter");

  auto& particles = scene.add_component<sbx::particles::particle_emitter>(tail_emitter);
  particles.max_particles = 1000;
  particles.emission_rate = 100.0f;
  particles.initial_color = sbx::math::color{255u, 140u, 0u, 250u};
  particles.end_color = sbx::math::color{255u, 69u, 0u, 0u};

  // Create a skybox
  auto camera_node = scene.camera();

  scene.add_component<sbx::scenes::skybox>(camera_node, scene.get_cube_image("skybox"), _brdf, _irradiance, _prefiltered);

  // Attach a C# script to the camera
  auto& scripting_module = sbx::core::engine::get_module<sbx::scripting::scripting_module>();

  scripting_module.instantiate(camera_anchor, "build/.../Demo.dll", "Demo.CameraController");

  // ...
}

Setting Up the Renderer

The renderer defines the full render graph — shadow passes, deferred G-buffer, transparency, resolve, and post-processing:

renderer::renderer() {
  // G-buffer attachments
  auto depth    = create_attachment("depth", attachment::type::depth);
  auto albedo   = create_attachment("albedo", attachment::type::image, ...);
  auto position = create_attachment("position", attachment::type::image, ...);
  auto normal   = create_attachment("normal", attachment::type::image, ...);
  auto material = create_attachment("material", attachment::type::image, ...);
  auto emissive = create_attachment("emissive", attachment::type::image, ...);

  // 4-cascade shadow maps
  auto shadow0 = create_attachment("shadow0", ...);
  // ...

  // Compute passes
  auto skinning_pass  = create_pass([&](auto& ctx) { return ctx.compute_pass("skinning"); });
  auto particles_pass = create_pass([&](auto& ctx) { return ctx.compute_pass("particles"); });

  // Graphics passes with explicit dependencies
  auto deferred_pass = create_pass([&](auto& ctx) {
    auto pass = ctx.graphics_pass("deferred");
    pass.depends_on(skinning_pass);
    pass.writes(depth, albedo, position, normal, material, emissive, ...);
    return pass;
  });

  // ... shadow passes, transparency pass, resolve pass ...

  build_render_graph();

  // Bind subrenderers to passes
  add_subrenderer<static_mesh_material_subrenderer>(deferred_pass, ...);
  add_subrenderer<skinned_mesh_material_subrenderer>(deferred_pass, ...);
  add_subrenderer<particle_subrenderer>(transparency_pass, ...);
  add_subrenderer<resolve_opaque_filter>(resolve_pass, ...);
  add_subrenderer<skybox_subrenderer>(resolve_pass, ...);
  add_subrenderer<tonemap_filter>(tonemap_pass, ...);
  add_subrenderer<fxaa_filter>(fxaa_pass, ...);
  add_subrenderer<editor_subrenderer>(editor_pass, ...);
}

Entry Point

The engine is bootstrapped from a simple main that creates the engine instance and runs the application:

#include <libsbx/core/core.hpp>
#include <libsbx/core/engine.hpp>

#include <demo/application.hpp>

auto main(int argc, const char** argv) -> int {
  auto args = std::vector<std::string_view>{argv, argv + argc};

  try {
    auto engine = std::make_unique<sbx::core::engine>(args);

    engine->run<demo::application>();
  } catch(const std::exception& exception) {
    sbx::utility::logger<"demo">::error("{}", exception.what());

    return sbx::core::exit::failure;
  }

  return sbx::core::exit::success;
}

Gallery

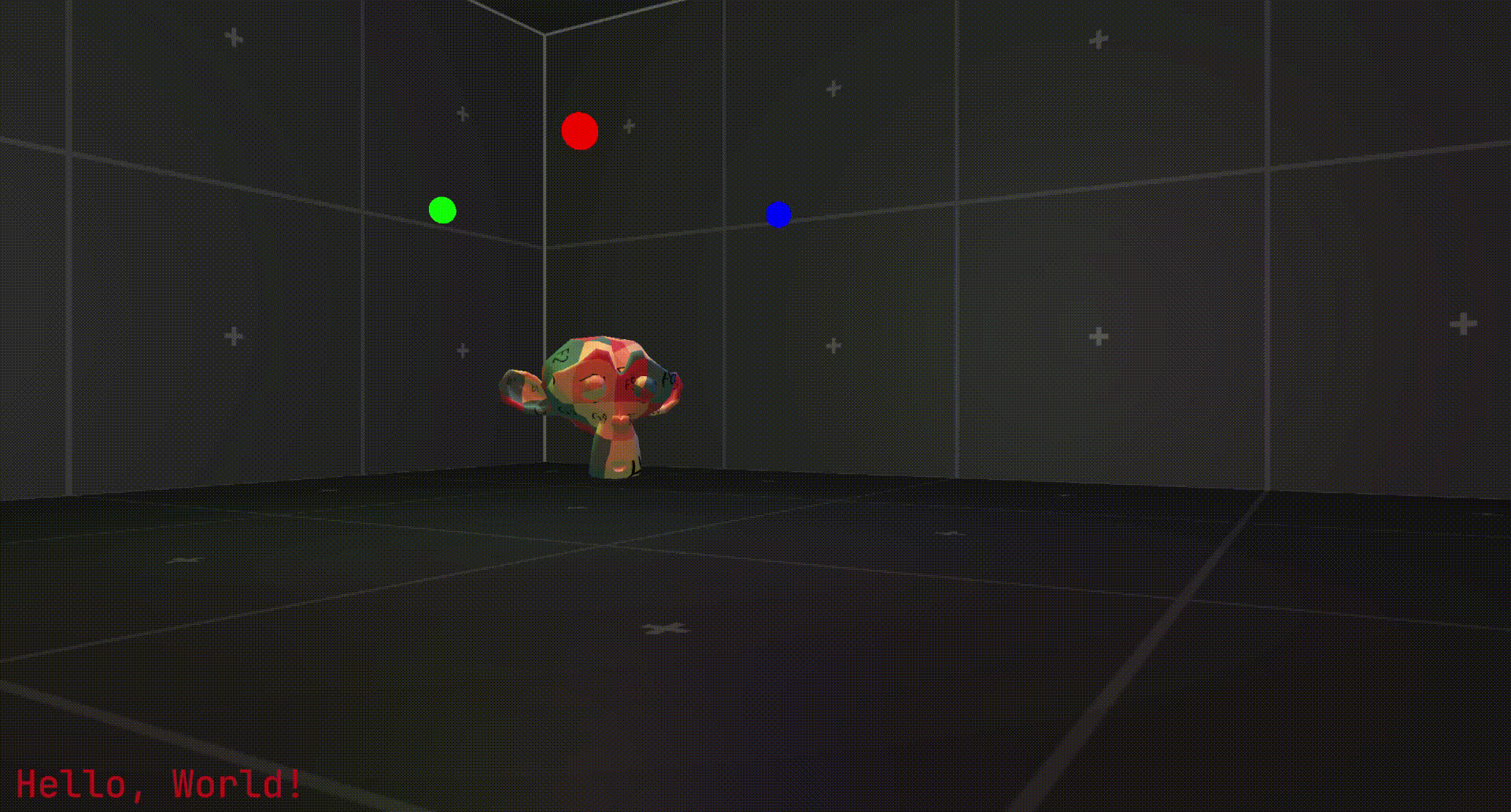

Real-time dynamic lighting

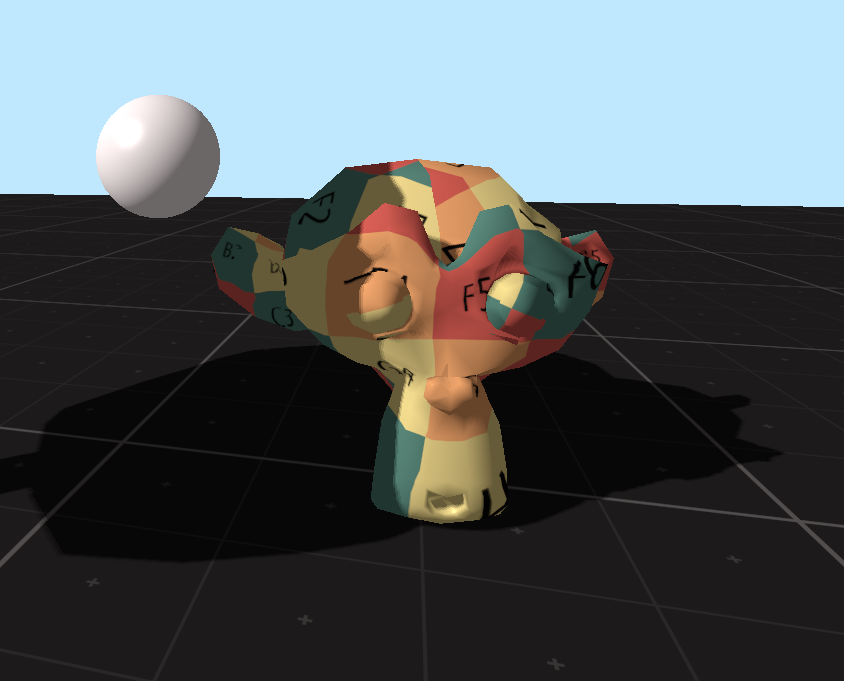

Shadow mapping

Contributing

Contributions are welcome! To get involved:

1. Fork the repository
2. Create a feature branch off development
3. Make your changes
4. Open a pull request

Found a bug or have a suggestion? Open an issue.

License

This project is licensed under the [MIT License](LICENSE).

Feel free to use this project for your own purposes. If you do, send me a message — I'd love to see what you've built with it.
